SHANGHAI SANFU CHEMICAL CO.,LTD.
SFC3283
SFC3283
Couldn't load pickup availability
Share
Introduction:
SFC-3283 is a clear, colorless, perfluorinated liquid. Its wide range of liquids makes it ideal for a variety of applications such as etchers, ion implantation, testers, and more. In addition, it is thermally and chemically stable, and the components in the liquid remain stable for long periods of time, making it ideal for heat transfer and heat dissipation applications in semiconductor manufacturing, data centers, power electronics, and more. As a fluorinated inert fluid, it can also be used as an inert reaction medium.
Applications:
This fluorinated fluid is ideal for many single-phase heat transfer applications and is widely used in semiconductor manufacturing and large data centers for heat dissipation.
Technical parameters:
|
|
3M FC-3283 |
SFC-3283 |
|
Exterior condition |
Colorless and transparent |
Colorless and transparent |
|
Boiling point ℃ |
123-133 |
123-133 |
|
Pour Point ℃ |
-65 |
-65 |
|
Critical point temperature ℃ |
235 |
235 |
|
Critical point pressure |
1.22×106 |
1.22×106 |
|
Vapor pressure Pa |
1.3×10³ |
1.44×10³ |
|
Latent heat of evaporation J/g |
78 |
78 |
|
Density Kg/m3 |
1830 |
1821 |
|
Expansion coefficient t °C |
0.0014 |
0.0014 |
|
Kinematic viscosity cSt |
0.75 |
0.76 |
|
Absolute Viscosity cP |
1.4 |
1.4 |
|
Specific heat Jkg-1°C-1 |
1100 |
1100 |
|
Thermal conductivity Wm-1°C |
0.067 |
0.067 |
|
Surface tension dynes/cm |
15 |
14.6 |
|
Water solubility ppm (wt.) |
11 |
9 |
|
Solubility in water ppm (wt.) |
<5 |
<5 |
|
Dielectric strength KV |
>40 |
56 |
|
Dielectric constant |
1.9 |
1.9 |
|
Dielectric strength Ω-cm |
5.0×1015 |
5.0×1015 |
|
Residue ppm |
≤10 |
≤10 |
|
Average molecular weight g/mol |
521 |
521 |
|
Index of refraction |
1.28 |
1.28 |
|
Flash point |
None |
None |
|
Ozone depletion potential |
0 |
0 |

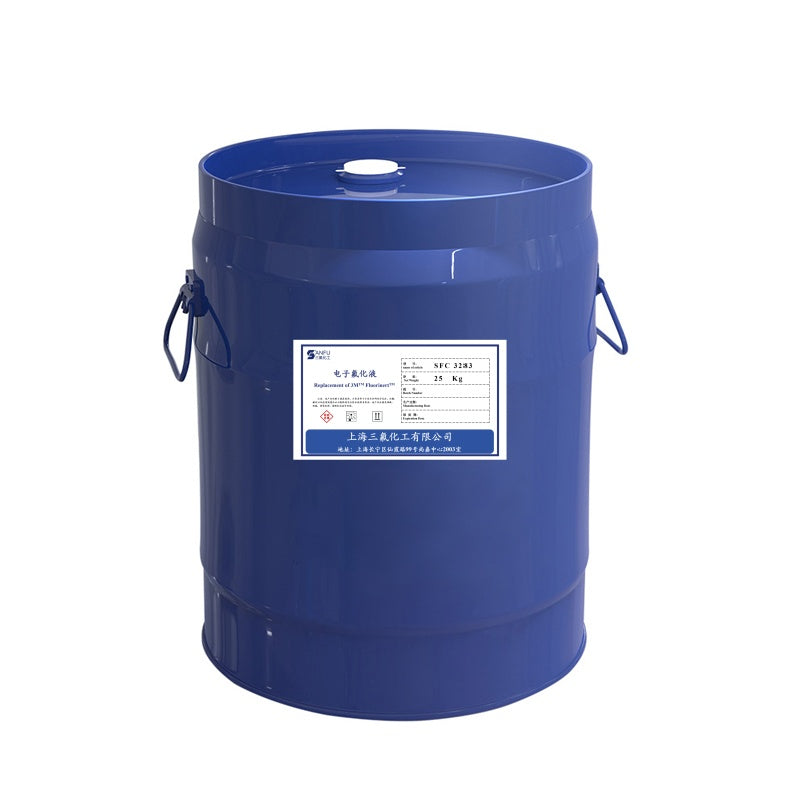

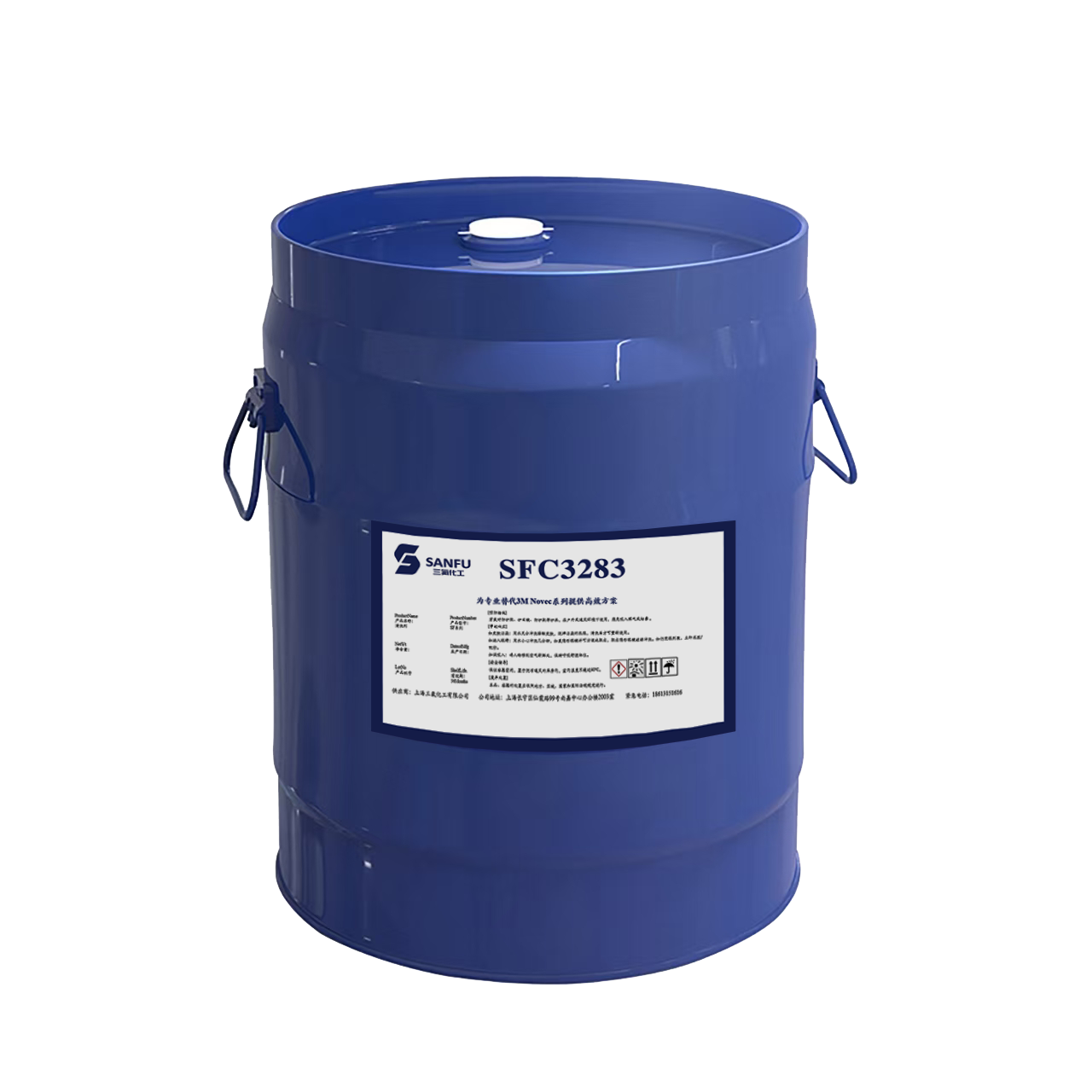

Packing：20kg/drum, 50kg/drum and 250kg/drum
