SHANGHAI SANFU CHEMICAL CO.,LTD.

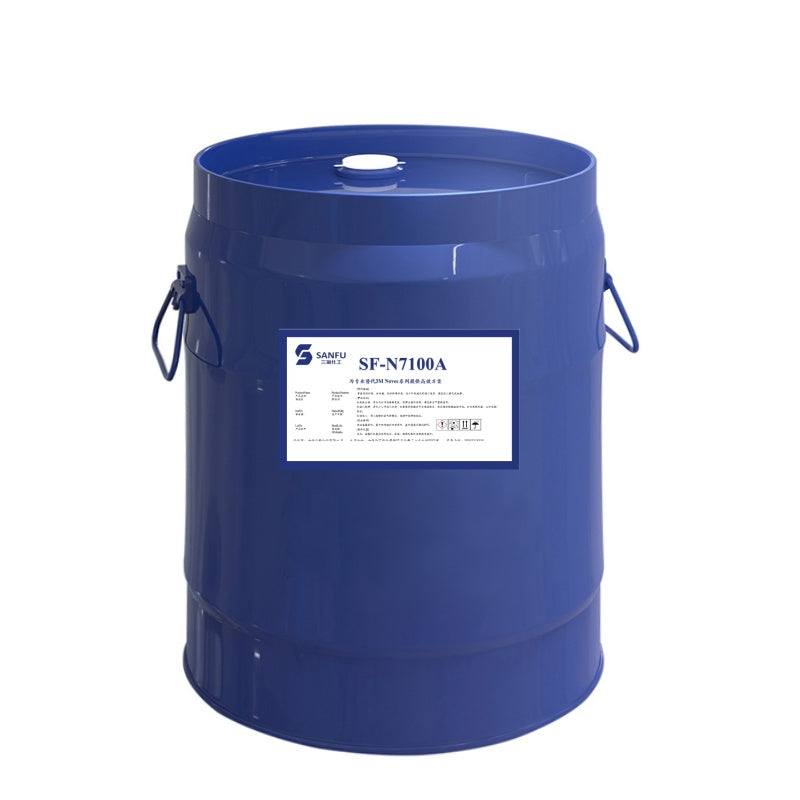

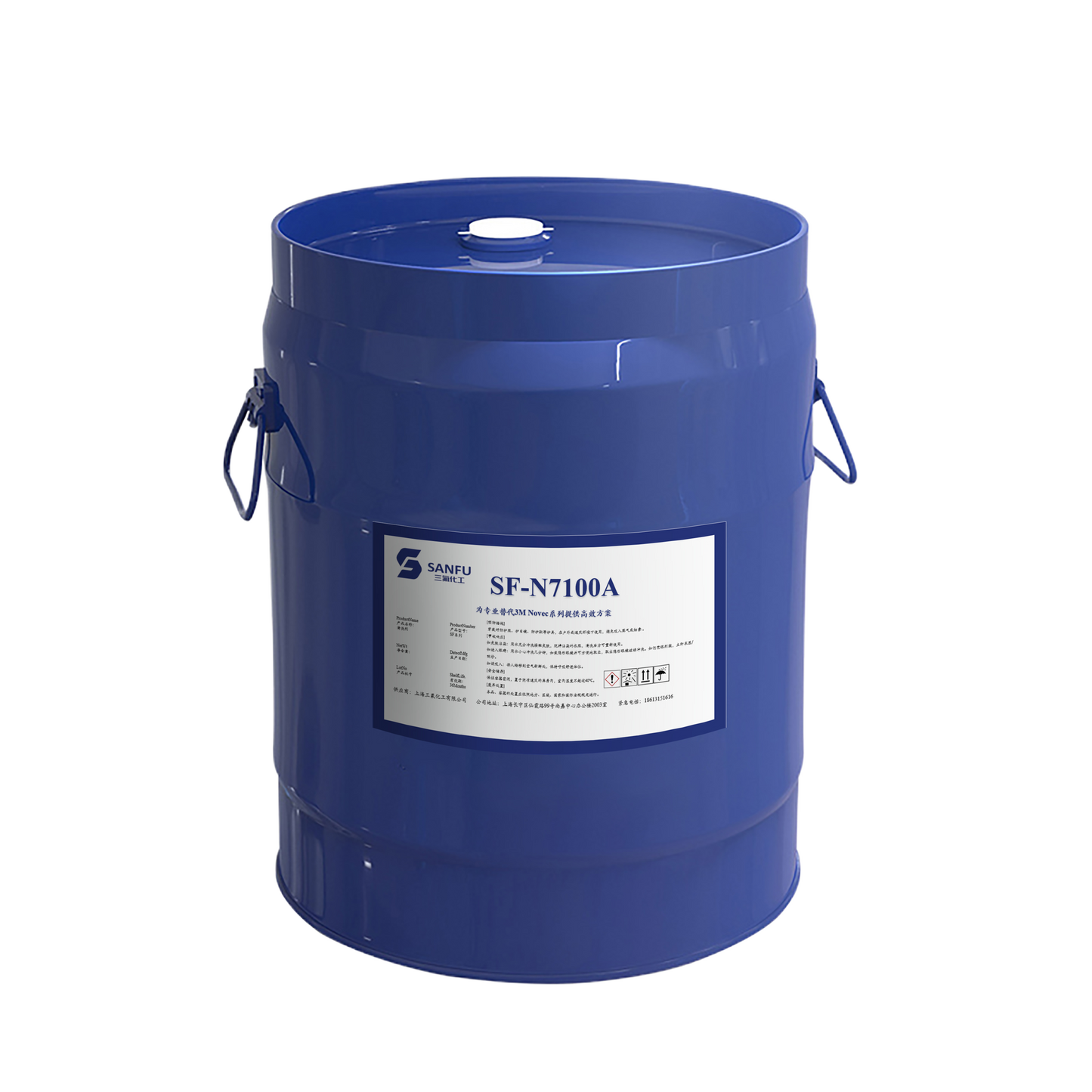

SF N7100A
SF N7100A
Couldn't load pickup availability
Share
Product Description:
SF N7100A is a HFE (hydrofluoroether) based fluorine solution with zero ozone depletion potential and good environmental, health and safety characteristics, which can be used as a replacement for solvents such as HCFC-141b, HCFC-225, CFC-113, nPB and others. Meanwhile, SF N7100A has excellent physicochemical properties and can be used as an equivalent replacement for 3M Novec 7100 and Asahi Nitrate AE 3000 in the fields of cleaning, liquid cooling, heat transfer fluids, solvents and lubricant diluents. In addition, SF N7100A possesses low surface tension, low viscosity, strong wettability, non-flammability, stability and good solubility to impurities such as oil, making it ideal for submerged and vapor degreasing applications, and it can be widely used in the cleaning of electronic products and other precision equipment.
Characteristics and advantages:
Suitable physicochemical properties, can be equivalent to replace 3M Novec 7100, Asahi Nitrate AE 3000 equivalent alternatives;
Excellent environmental protection properties, specifically lower GWP and zero ODP, can be an effective alternative to HCFC-141b, HCFC-225, CFC-113, nPB and other chemicals used in cleaning and solvent applications;
Lower surface tension, Better grease solubility and faster evaporation potential, can be applied to many forms of cleaning environments as well as specialty solvents, which can remove stains better;
Higher insulating properties, which provide an excellent basis for cleaning, heat transfer and immersion liquid cooling of semiconductors, electronic equipment, data centers, etc.;
Non-flammable, low odor and toxicity, which guarantees the safety of use, storage and transportation;
Applications:
Thermal Conductivity Fluid; Immersion liquid cooling for data centers; steam cleaning, precision instrument cleaning, optical cleaning, etc., including heavy oil type cleaning (lubricants, fluxes, heavy fuel oils, etc.), light-medium oil and grease cleaning (granular, fluorinated). lubricants, light fuel oils, waxes, etc.); lubricant carriers; specialized solvents, etc.
Physicochemical Properties:
Comparison of physicochemical properties of similar equivalent alternative products:
physical and chemical properties |
unit |
SF N7100A |
3M Novec7100 |
AE-3000 |
Molecular mass |
g/mol |
200.06 |
250 |
200.06 |
Boiling |
℃ |
56.2 |
61 |
56 |
Freezing point |
℃ |
-91 |
-135 |
-93 |
Density @ 25°C |
g/ml |
1.487 |
1.51 |
1.47 |
Viscosity@25℃ |
mPa.s |
0.65 |
0.57 |
0.65 |
Surface Tension@25℃ |
mN/m |
16.4 |
13.6 |
16 |
Latent heat of evaporation |
KJ/Kg |
163 |
126 |
163 |
Evaporation rate |
(醚=100) |
67 |
49 |
67 |
Specific heat@25℃ |
KJ/kg.K |
1.26 |
1.172 |
1.3 |
Volume resistivity@25℃ |
Ω.m |
1.3×109 |
108 |
1.3×109 |
Dielectric Breakdown Voltage |
KV |
40 |
28 |
40 |
KB |
|
13 |
>25 |
13 |
Flash point |
℃ |
None |
None |
None |
ODP |
|
0 |
0 |
0 |
GWP |
|
540 |
320 |
580 |
