Product Description
LS-T series perfluoropolyether heat transfer oil utilizes the advantages of high boiling point and low pour point of perfluoropolyether, which can control the continuous temperature of the equipment at a certain setting level under relatively harsh working conditions (extremely high and low temperature conditions).
LS-T series PFPE heat transfer oil has chemical resistance, low thermal resistance, non-toxicity, excellent dielectric properties, no flash point, no flash point, low viscosity, no ozone damage, and meets the requirements of RoHS, REACH, PFAS, and belongs to the green environmental protection products.
Chemical composition
Perfluoro Polyether
Applications
This series of products can be used in specific production conditions such as component impregnation, wafer etching, ion implantation, and temperature management of equipment such as radar, transformers, power supply units, refrigerators, cooling towers, and lyophilizers.
Packaging, transportation and storage

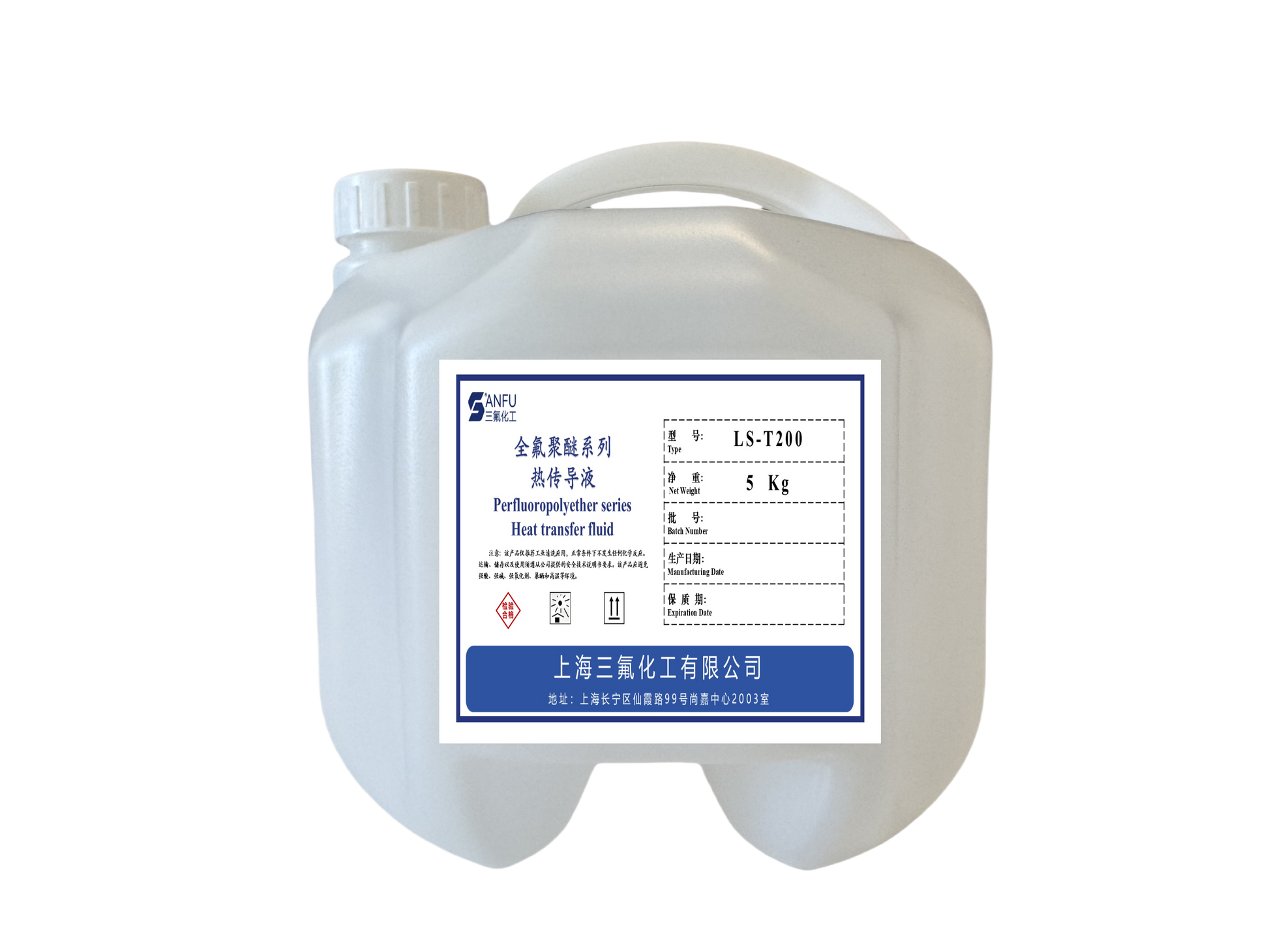

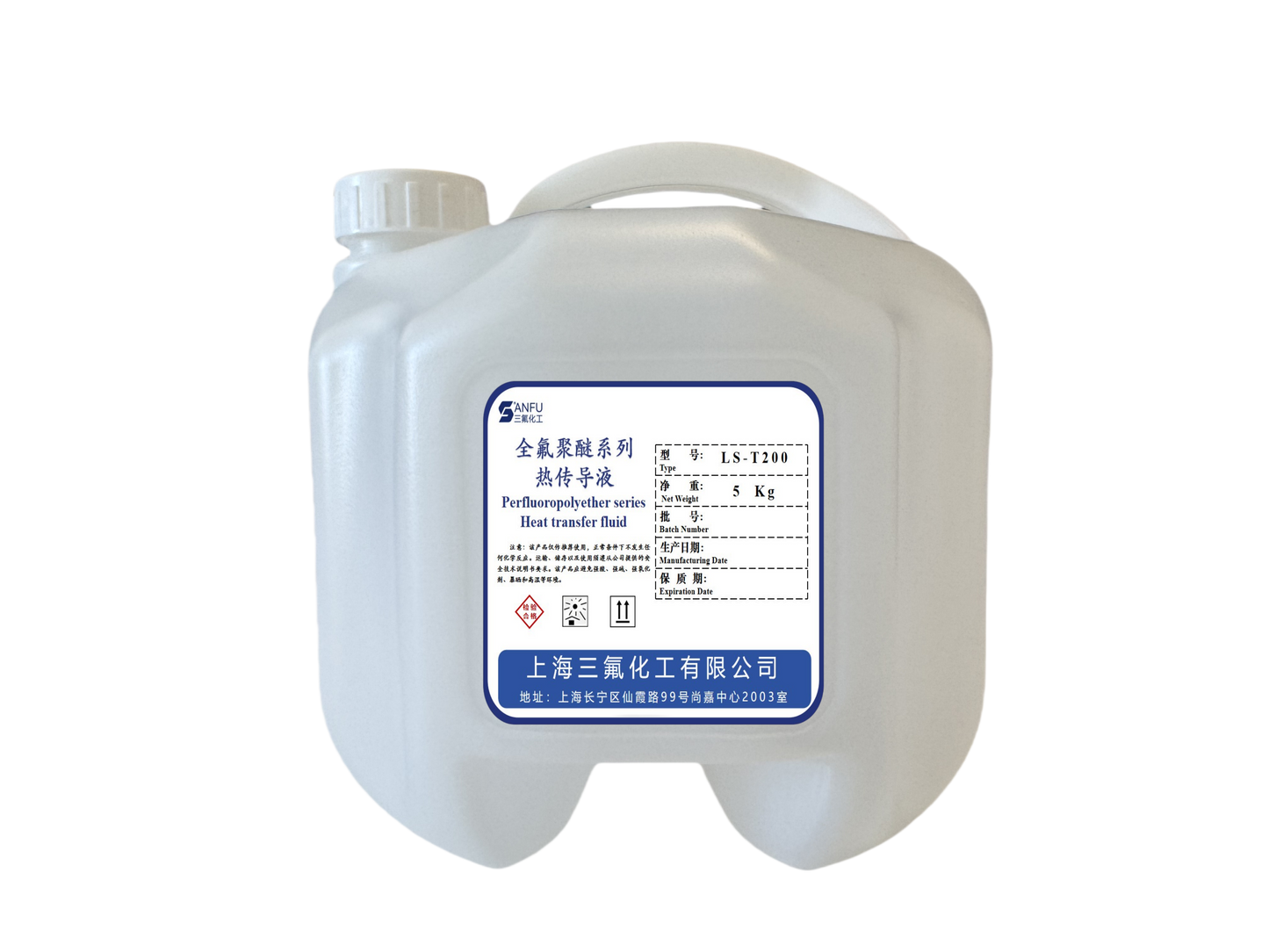

The product is supplied in 5kg plastic drums.
The product is packaged in plastic drums, please pay attention to light handling, keep the bottle upright to prevent damage to the packaging or oil leakage.
The product is pressure-free, non-commercial, non-toxic, harmless and non-polluting, and its packaging meets the requirements of sea and air transportation.
Product Performance
LS-T Series Product Performance Parameter Table
model |
110 |
135 |
170 |
200 |
230 |
270 |
Boiling point |
110 |
135 |
170 |
200 |
230 |
270 |
Pour Point |
-100 |
-100 |
-97 |
-85 |
-77 |
-66 |
Density |
1.69 |
1.73 |
1.78 |
1.79 |
1.81 |
1.84 |
Kinematic viscosity |
0.8 |
1.1 |
1.7 |
2.9 |
4.7 |
12 |
Specific heat capacity |
0.23 |
0.23 |
0.23 |
0.23 |
0.23 |
0.23 |
Thermal conductivity |
0.065 |
0.065 |
0.065 |
0.065 |
0.065 |
0.065 |
Penetration voltage |
>40 |
>40 |
>40 |
>40 |
>40 |
>40 |
Dielectric constant |
<1 |
<2 |
<2 |
<2 |
<2 |
<2 |
Volumetric resistivity |
>1.0*1013 |
>1.0*1013 |
>1.0*1015 |
>1.0*1015 |
>1.0*1015 |
>1.0*1015 |
Dielectric losses |
2*10-4 |
2*10-4 |
2*10-4 |
2*10-4 |
2*10-4 |
2*10-4 |
Moisture/ppm |
<10 |
<10 |
<10 |
<10 |
<10 |
<10 |
