SHANGHAI SANFU CHEMICAL CO.,LTD.

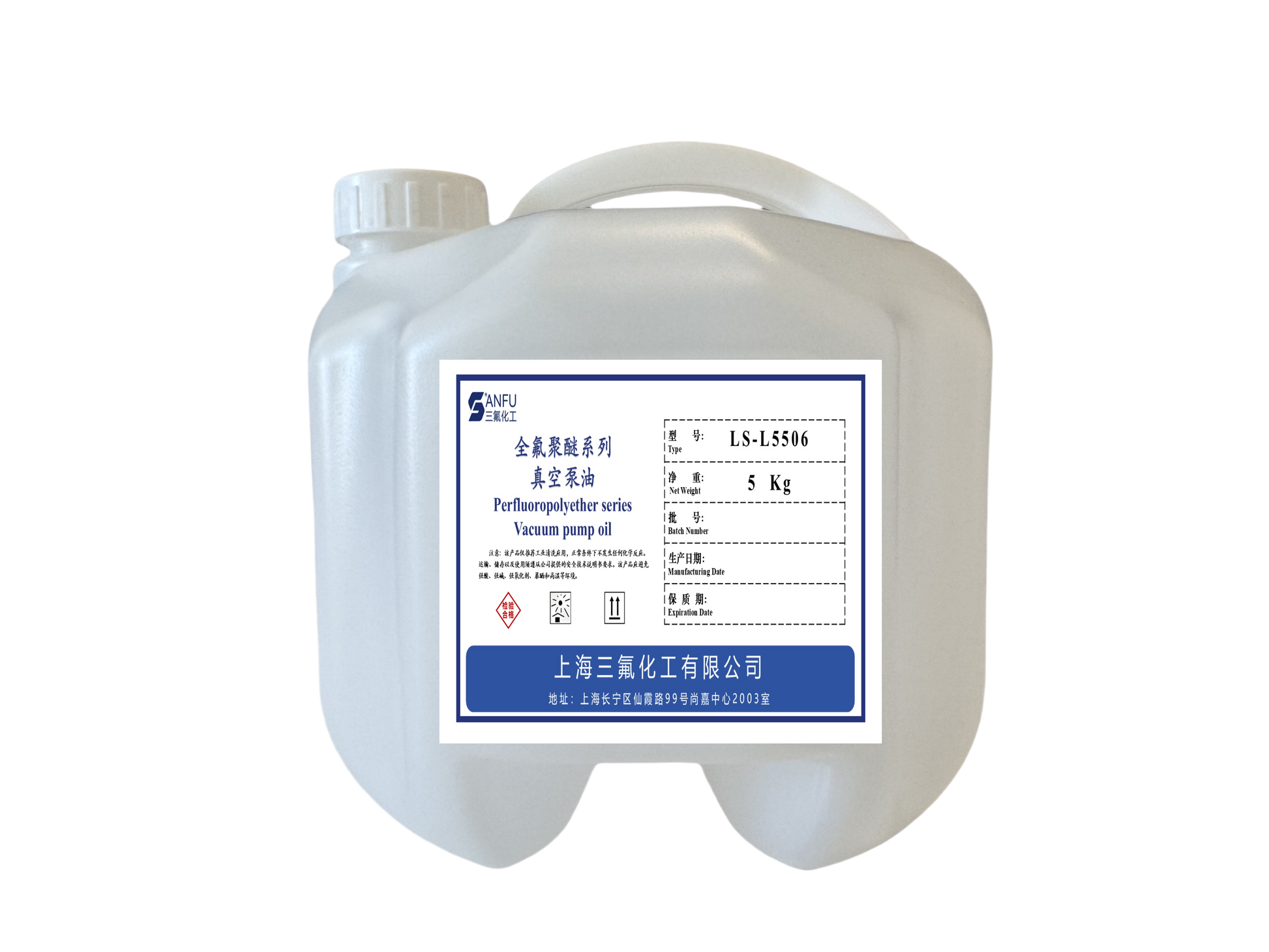

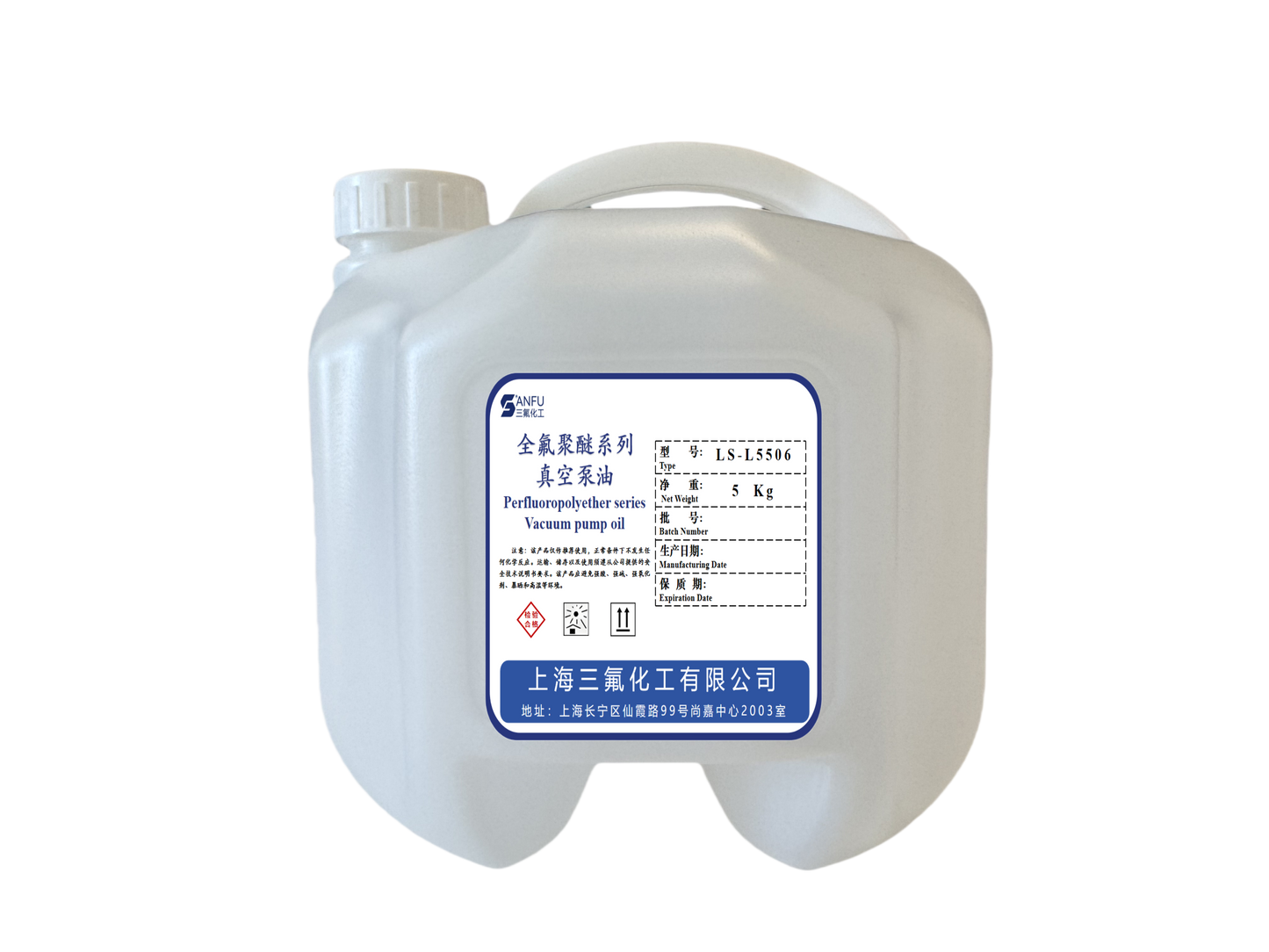

LS-L5506
LS-L5506
Couldn't load pickup availability
Share
Product Description
LS-L series perfluoropolyether vacuum pump oil is extraordinarily inert and is an ideal medium for vacuum pumps handling reactive gases such as UF6, F2, O2, O3 and tritium, because the oil can come into direct contact with these gases without reacting or degrading the oil.
LS-L series perfluoropolyether vacuum pump oil is a perfluorinated polymer with only fluorine, carbon and oxygen atoms in the polymer chain, so it has the following characteristics: low vapor pressure, low volatility, no flash point, good lubricity, good compatibility, good radiation stability, chemical inertness and non-toxicity.
Chemical composition
Perfluoropolyether
Application
This series of products can be used in rotary vane pumps, mechanical pumps, sealing and lubrication, molecular pump lubrication, Roots pump lubrication and diffusion pumps with inert fluids.
Packaging, Transportation and Storage
The product is supplied in plastic drums of 1kg and 5kg.
The product is packaged in plastic drums, please pay attention to light handling and keep the bottle upright to prevent damage to the outer packaging or oil leakage.
This product has no pressure, no commercial corrosion, non-toxic, harmless and non-polluting, and its packaging method meets the requirements of sea and air transportation.
Product Performance
LS-L Series Product Performance Parameter Table
model |
2406 |
4506 |
5506 |
8006 |
Density |
1.88 |
1.89 |
1.89 |
1.90 |
Kinematic viscosity |
65 |
145 |
165 |
280 |
Kinematic viscosity |
24 |
45 |
55 |
80 |
vapor pressure |
3x10-6 3x10-3 |
2x10-7 2x10-4 |
2x10-6 2x10-4 |
6x10-8 6x10-5 |
20℃ |
||||
100℃ |
||||
Pour Point |
-58 |
-50 |
-45 |
-36 |
Surface Tension |
21 |
22 |
22 |
22 |
total pressure |
1.7x10-3 |
1.4x10-3 |
1.3x10-3 |
1.1x10-3 |
Operating temperature |
-58-150 |
-40-180 |
-45-190 |
-36-195 |
